Garrett G40 7170

1000-1100HP Rated for the b58 platform


Product Description:

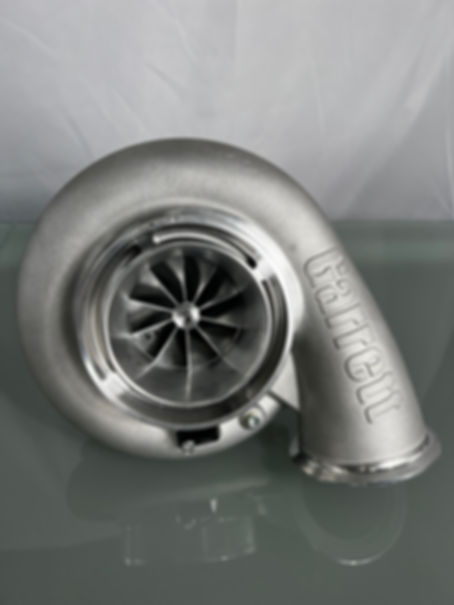

  • Garrett G-Series G40-1150 (71mm Comp Wheel) Turbocharger Unit w/ T4 Divided or Vband .85 A/R Turbine Housing


Product Features:

  • Quick spooling, high horsepower solution for the b58 engine platform
  • G Series compressor aero increases flow up to 35% (compared to GTX4088R)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 16% (compared to GTX4088R)
  • Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings available with T4 twin scroll inlet
  • T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

Product Specifications:

  • Compressor Wheel Inducer: 71mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84

Garrett G40 7170
